The TiCN coating is harder than TiN coating but has a lower thermal resistance. Therefore, it is more effective than TiN coatings under the conditions that provide intensive wear.
Features
Color of TiCN coating: Grayish black
Micro-hardness of TiCN coating: Hv3000
Thickness of TiCN coating: 1-4µm
Thermal tolerance of TiCN coating: 500º C
Coefficient of friction by TiCN coating: 0.4
Adhesive force by TiCN coating: >60N
Specification
Coating temperature of TiCN: <500ºC
Material of substrate: SUS, HSS, SKD61, WC, ceramics, glass, Al alloy, Ti alloy.

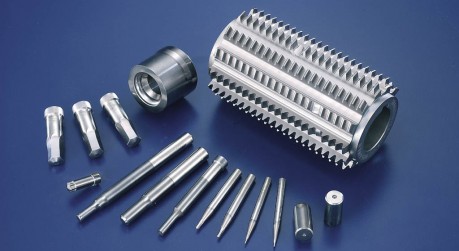

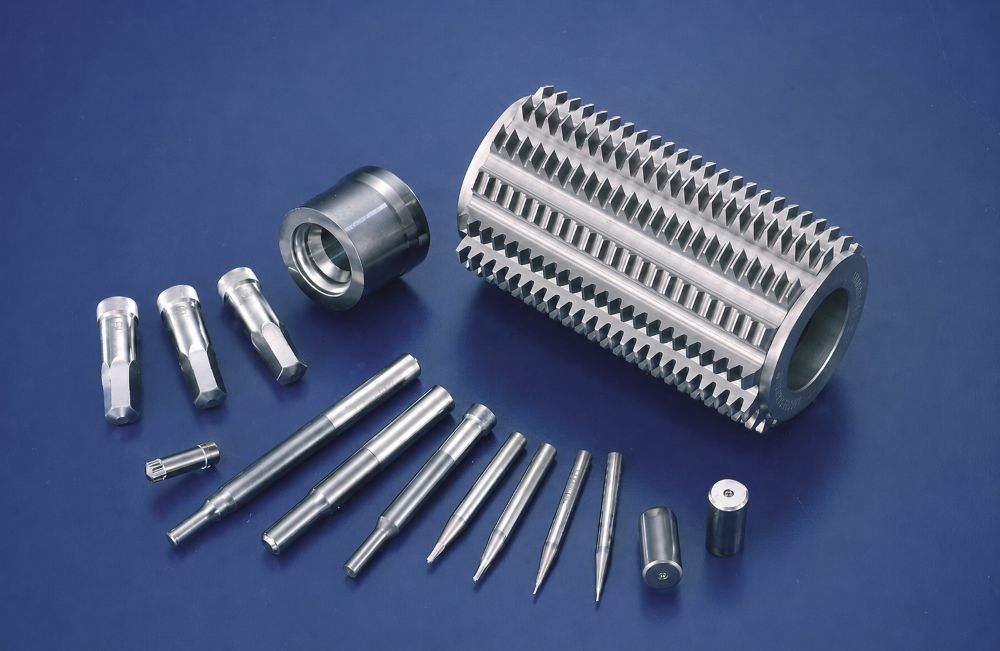

Suitable for : cutting tools, cold working punches and dies for harder steel and alloy, mechanical parts, decorative parts, etc.
